Combiner

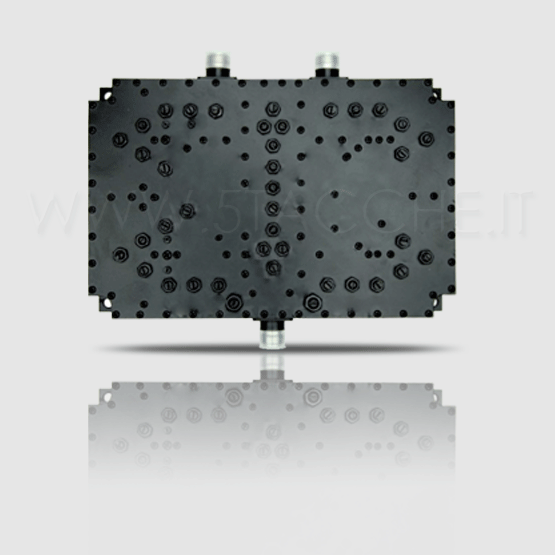

I Combiner consentono di utilizzare più antenne esterne con guadagni e direzionamenti differenti.
La linea dei combiner 5Tacche prevede varie soluzioni a 2 o 3 ingressi e con diversi livelli di attenuazione e di ampiezza di banda.
Categories:

Modello
ZHCM-071702D-5U1A
Device Type
Dual-band
Frequency Band(MHz)
2G: 700-960
3G: 1710-2170
Bandwidth(MHz)
260
460
Insertion Loss(dB)/th>
<0.2 Typical <0.15
Isolation Between port1&port2 (dB)
>50 Typical >55
VSWR
<1.22
Intermodulation Products(dBc)
<-150(3rd order; with 2 x 20 W) <-155 typical
Input Average Power ,Continuous（W）
300
Temperature Range(℃)
-40~+65
Impedance(Ω)
50
Connectors
DIN-Female
Type
Cavity Type
Application
IndoorIP60
Operating Humidity
5-95%
Weight(kg)
0,71
Modello
ZHCM-171902N-5U1A
System
GSM1800
WCDMA
Frequency Band(MHz) 1710-1880 1920-2170
Band width(MHz)
170
250
Insertion loss(dB)
<0.6
Ripple(dB)
<0.4
Return loss(dB)
≥20
Attenuation(dB)
≥80@1920-2170 MHz
≥80@1710-1880 MHz
Isolation( dB)
≥80
IM3(dBc)
<-150@+43dBmX2
Impedance(Ω)
50
Input power（W）
100(continuous)
Temperature range
-10~+60
Connectors
N-F
Application
indoor
Operating Humidity
5-90%
Weight(kg)
1.27
Modello
ZHCM-08171903N-5U1A
System
CH1：CDMA800&GSM900
CH2：GSM1800
CH3:WCDMA
Frequency Band(MHz)
806-960
1710-1880
1920-2170
Band width(MHz)
154
170
250
Insertion loss(dB)
<0.6
Ripple(dB)
<0.4
Return loss(dB)
≥18

Attenuation(dB)
≥80
Isolation( dB)
≥80
IM3(dBc)
<-150@+43dBmX2
Impedance(Ω)
50
Input power（W）
200
Temperature range(℃)
-25~+65
Connectors
N-F
Application
indoor
Dimensioni
227*151*41 (incluso il connettore)
Weight(kg)
1.27
